    Fully Automated 1-5L Fruit and Vegetable Juice Bottles Piston Filling Machine With Volumetric Piston Filler

    Ask Lasest Price
    Brand Name : STRPACK
    Model Number : STR
    Certification : ISO,CE
    Price : Price Negotiable
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    Delivery Time : 3-50 Working Days
    • Product Details
    • Company Profile

    Fully Automated 1-5L Fruit and Vegetable Juice Bottles Piston Filling Machine With Volumetric Piston Filler

    Fully Automated 1-5L Fruit and Vegetable Juice Bottles Piston Filling Machine With Volumetric Piston Filler

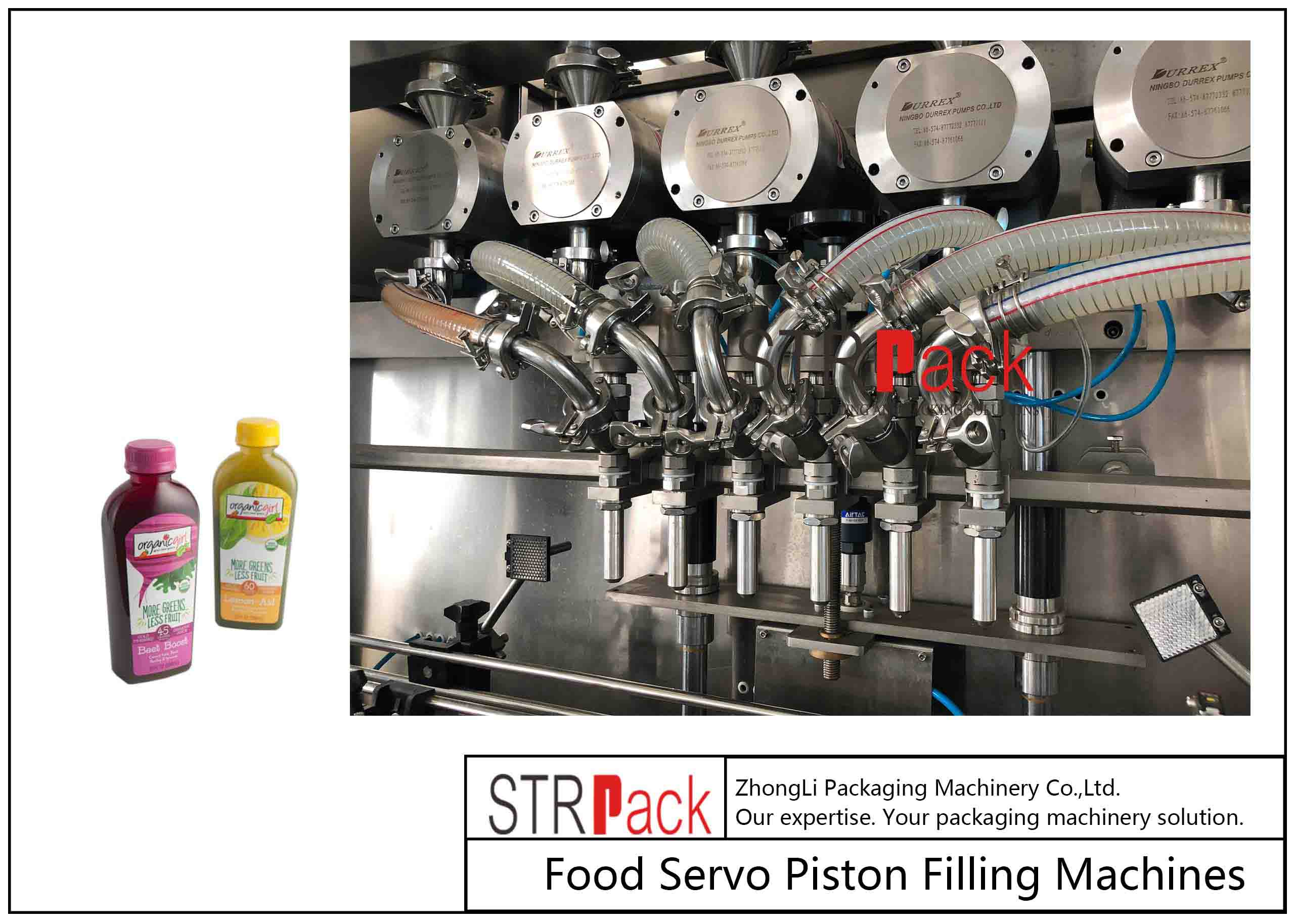

    Automatic Filling Machine - Piston Filler

    The Automatic Piston Filler is an ideal solution for filling liquids, semi-solids and products with particulates, and will almost always be the machine of choice for high viscosity products. The automatic piston filling machine features a large product hopper and the piston size will be matched to the container or project at hand. Given that the piston and cylinder do not change in size from cycle to cycle, these machines provide a highly accurate volumetric fill.


    Advantage

    Heavy Duty Portable Stainless Steel Frame

    Power Height Adjustment

    Up To 12 Cylinders/Fill Heads

    Product Supply Hopper

    Various Piston Sizes

    Upgradeable

    Missing Bottle and Anti-Bottle Backup Vision Systems

    Tool Free Adjustments


    Options

    Semi-Automatic Machine

    Automatic Drip Tray

    Bottle Grabbers - Neck Grabbers

    Various Indexing Systems - Pin or Gate, Timing, Screw, Starwheel and Shuttle

    Larger Hopper

    Heated Hopper

    Heated Valve Block

    High Temperature Applications

    Level Control System

    Diving Head Nozzles

    Product Agitation and Mixing

    Teflon Contact Parts

    Wash Down Motors and Controls

    Various Fill Ranges


    Main technical parameters

    No.ItemPerformance
    01Requested speed120bpm
    02Filling volume1000ml(could be customized based on requirements)
    03Number of filling heads20
    05AccuracyUp to ±1%
    06Machine dimension(L*W*H)2400mm*1350mm*2500mm
    07Power5KW
    08Power supplyAC 380V,50Hz;or AC 220V,50Hz (Customized)
    09Air operated source0.4-0.6Mpa clean and stable compressed air
    10weightAbout2000kg

    Major technical components

    No.NAMEBRAND
    01Frequency converterSchneider
    02Intermediate RelayPanasonic
    03PLC

    Siemens

    04Touch ScreenSiemens
    05BreakerSchneider
    06ServoPanasonic
    07PhotosensorSICK
    08Airpressure-SwitchAirtac



    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.
    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.
    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
