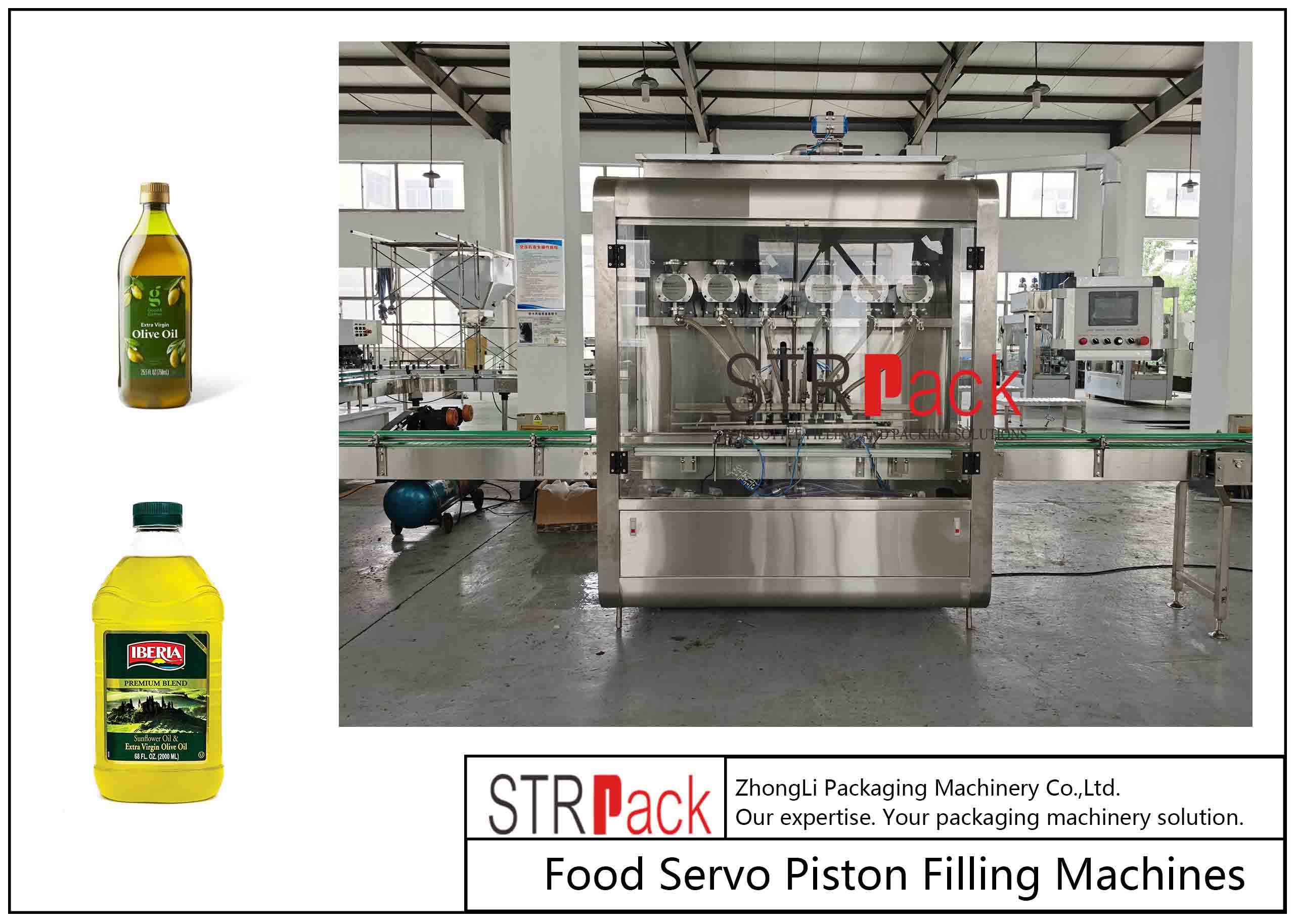

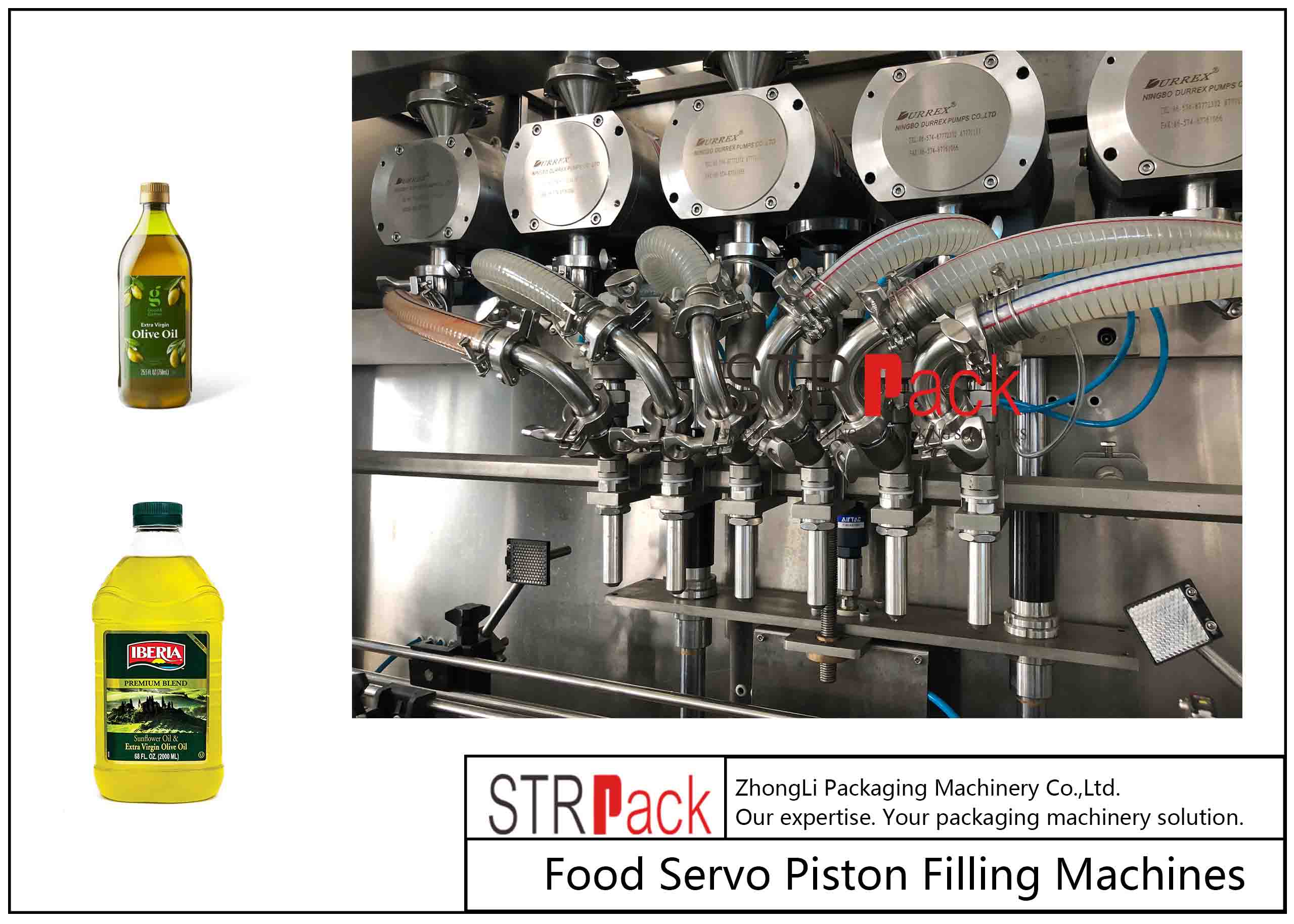

    Automatic 5L Edible Cooking Oil Filling Machine PLC Control 8 Nozzles

    Ask Lasest Price
    Brand Name : STRPACK
    Model Number : STR
    Certification : ISO,CE
    Price : Price Negotiable
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    Delivery Time : 3-50 Working Days
    • Product Details
    • Company Profile

    Automatic 5L Edible Cooking Oil Filling Machine PLC Control 8 Nozzles

    Automatic 1-5L Edible Oil Filling Machine PLC Control 8 Nozzles Cooking Oil Filling Machine


    Edible oil filling packaging machine

    Edible oil is around our world. Most of the common edible oils are vegetable oils and in liquid status. They are usually made from oil-rich crops and seeds, including cocoa butter, palm oil, peanut oil, olive oil and coconut oil, sesame oil, soybean oil, canola oil, linseed seed oil, tea-seed oil, grape seed oil, corn oil (corn germ oil), etc., animal oils include lard, roast duck oil, tallow, cod liver oil, chicken oil, squalene oil, fish oil, shortening, etc. Nowadays, no matter whether it is street vendors, eateries or restaurants, the demand for edible oil is more and more diversified, so the demand for edible oil continues to increase, and the manufacturing supplier keeps up with the changing needs of consumers while taking care of the hygiene of the products. As a result, more manual labors are needed for the product packaging. We offer you more choices of bottling packaging solutions, many of the new bottle packaging models can be customized with the production line, from the bottle in-feeding, oil filling, capping to labeling, according to customers’ actual product requirements. The actual product filling and packaging requirements are designed. The filling station can adjust the number of filling heads according to the actual production speed demand. The feeding system is added to store the liquid to be filled and ensure that the liquid maintains a certain amount of stock and maintains the liquid filling accuracy The cap tightening system can be equipped with an automatic cap feeding mechanism. Whether it is a cap with inner cap or with a round pull ring, a safety cover or a general outer screw cap, we will design and customize the exclusive machine for the product. If there is demand for automated production line, it can adopt robotic-arm pick and place system to accurately pick the cap on the bottle. No matter it’s for round or square bottles, 10 liters, 20 liters or 30 liters, the large volume barrel of oils, we all can provide you with the edible oil of large volume filling packaging solutions. Time-saving and Easy-to-use Automated Large Volume Edible Oil Filling Packaging Line Edible oil is one of the nutrients that people are indispensable for daily diet. Therefore, if the automatic filling machine is used in the simple packaging production mode, different sizes of bottle containers are gathered to be put into the feeding tray and then goes to the conveyor belt. Then the filling machine assists to divide the bottles into small packages and large packages. Generally, the edible oil filling adopts overflow filler type, which can maintain the same liquid level in each container after the oil filling is completed and can also adjust the horizontal surface to through the human-machine interface. Additionally, every machine is produced in a synchronous connection, and the colorful human-machine screen is user-friendly and visualized to simplify complicated operations. The production capacity for volume of 20 liters oil can even reach 3-5 bottles per minute, and the filling capacity ranges from 1 liter to 30 liters. It is very flexible and versatile for filling capacity, while the labeling machine at rear end adopts the front and back labeling, which can not only meet the needs of small-capacity single-sided labeling, but also meet the requirements of double-sided labeling for large-capacity barrel oil. Only a person is needed to replenish and collect the product during production, which reduces the labor costs and greatly improves the production efficiency. We’ll provide you with customized automated filling packaging solutions for edible oil of different volumes and specifications accordingly.


    Main technical parameters

    No.ItemPerformance
    01Requested speed80bpm
    02Filling volume1000ml(could be customized based on requirements)
    03Number of filling heads16
    05AccuracyUp to ±1%
    06Machine dimension(L*W*H)2400mm*1350mm*2500mm
    07Power5KW
    08Power supplyAC 380V,50Hz;or AC 220V,50Hz (Customized)
    09Air operated source0.4-0.6Mpa clean and stable compressed air
    10weightAbout2000kg

    Major technical components

    No.NAMEBRAND
    01Frequency converterSchneider
    02Intermediate RelayPanasonic
    03PLC

    Siemens

    04Touch ScreenSiemens
    05BreakerSchneider
    06ServoPanasonic
    07PhotosensorSICK
    08Airpressure-SwitchAirtac



    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.
    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.
    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
