    PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard

    Ask Lasest Price
    Brand Name : STRPACK
    Model Number : STR
    Certification : ISO,CE
    Price : Price Negotiable
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    Delivery Time : 3-50 Working Days
    • Product Details
    • Company Profile

    PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard

    Automatic honey jar filling capping labeling machine line

    Full automatic liquid filling machine adopts the principle of plunger quantitative filling, into the bottle, positioning, filling, the bottles are automatically controlled by the PLC, in accordance with the GMP standard. Suitable for medical, food, daily chemical, pesticide and fine chemical liquid filling.


    Model
    STRL-6L
    Canned speed
    2400 BPH
    Filling volume
    100-1000ml
    Voltyage
    220V/380V
    Power
    2KW
    Bottle diameter
    20-80mm
    Model
    STRB-140Z
    Supply Power(V/Hz)
    AC 220/50 110/60
    Heat sealing power(W)
    1500
    Bottle height(mm)
    38-300
    Application of cap diameter(mm)
    15-17
    Application of bottle diameter(mm)
    35-140
    Air pressure(mpa)
    0.3-0.5
    Production speed(bottle/min)
    80-160
    Dimension(L×W×H)(mm)
    2000X870X1500
    Weight(kg)
    350
    Model
    STRT-1530
    Voltage(V)
    AC 220/50 110/60
    Power(W)
    1500
    Label Accuracy(mm)
    ±1.0
    The Application of Products (mm)
    Diameter 12-100mm Height 30-200mm
    The Application range of label(mm)
    Height 15-100mm Length 20~300mm
    Production Speed(pcs/min)
    40-120
    Dimensions(L × W × H) (mm)
    2200×1400×1550
    Net Weight(kg)
    320

    Filling Line Details

    This Automatic Honey Filling Line comes with everything you need to get your liquid sweetener bottling line up and running. It is designed to bottle 50 bottles per minute. Start your project today by clicking request a quote below!


    Line Name: Automatic Honey Filling Line

    • Automation: Automatic
    • Filling volume:50-1000ml
    • Bottles Per Minute: 30-60

    Machines Included:

    • Bottle Feeding Turntable
    • Automatic 8 Head Servo Filling Machine

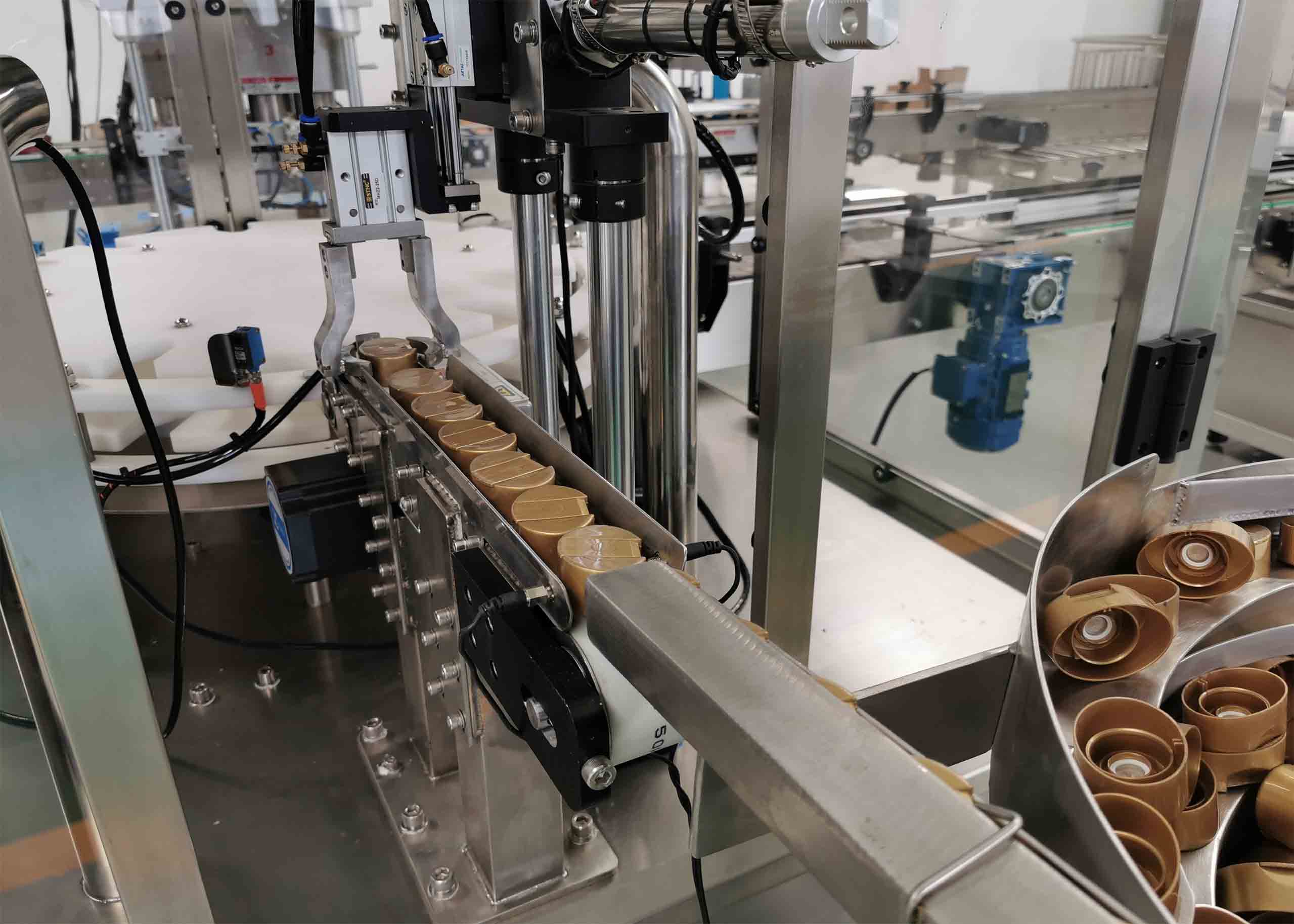

    • Automatic Star Wheel Type Capping Machine
    • Electromagnetic Induction Aluminum Foil Sealer
    • Automatic Bottle Labeling Machine
    • Bottle Working Table Rolling Type
    • Automatic carton sealing machine


    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 12months
    (2) Long time technology will be supplied.
    (3) We can send our engineer to your side for installing and debugging machines and training your people. Engineer's round-trip tickets, accommodation, daily allowance USD80.00/day/person, and your side traveling fee will be charged by you.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
