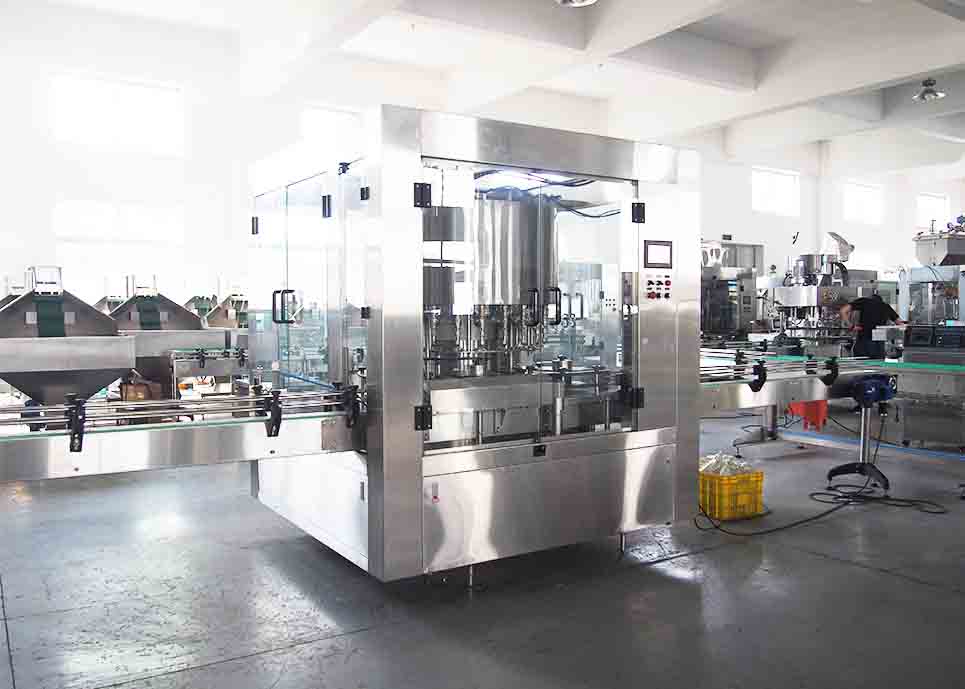

24 head Nozzle Automatic Rotary Gravity Filling Machinery For Wine Soy Sauce Liquid Filling Machine For 0.5-2L

Packaging Details:sea worthy packaging

Delivery Time:normally 30 working days

Specifications

1. PLC Control system, touch screen
2. speed: 8000bph
3. no bottle, not filling
4. piston filling
5. speed can be adjust

Main characteristics:

1.This rotary quantitative filling machine, high automation, large production capacity. Stroke of the piston cylinders are controlled by PLC. Whole filling process is the perfect combination of mechanism, electricity, photics and pneumatics,which performance reaches the international advanced technology .

2.Adopts advanced mechanical and electrical integration technology.Any filling specification can easily be changed by modifying parameters in touch screen. Not only the filling volume of 20 filling heads can be changed substantially, but also each filling head can be changed finely. The computer memory can save related parameter of each kind of package specification which save time for the next adjustment.

3.During the machine running cycle, each part of mechanical drive is protected by mechanical and electrical integration. Any abnormity during running, the machine will stop automatically and alarm and touch screen shows where the problem is.

4. Thanks to the function of watertight and pneumatic protection, it is environment-friendly equipment.

Technical parameter:

No.	Items	Performance
01	Machine Dimension(L×W×H)	2400mm × 2200mm x 2200mm
02	Number of filling heads	24
03	Bottle spec.
	Suitable bottles	Diameter:φ40mm~φ120mm; Height: 80mm~280mm
04	Filling volume	50ml~1000ml
05	Production capacity	≤12,000 bottles / hour (tested by water)
06	Filling tolerance
	50ml~200ml	≤±1ml
	200ml~1000ml	≤±2ml
07	Power supply	380V ;50Hz
08	Power	4.5 Kw
09	Pneumatic(air-operated)source	0.4~0.65 MPa clean and stable compressed air

Configuration

No.	ITEM	SUPPLIER	Brand
1	Touch screen	Taiwan	WEINVEIW
2	PLC	Japan	Mitsubishi
3	photo sensor	Japan	OPTEX
4	solenoid valve	Taiwan	SHAKO
5	Level button	Mexco	JOHNSON CONTROLS
6	angle seat Valve	German	BURKERT
7	Other divices	Taiwan	Airtac
8	Power button	France	Schneider
9	Button	France	Schneider
10	frequency converter	France	Schneider
11	bottle- transport motor	China	Huangyan
12	Speed reducer	China	Jiaoxing
13	Relay	Japan	Omron

After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
