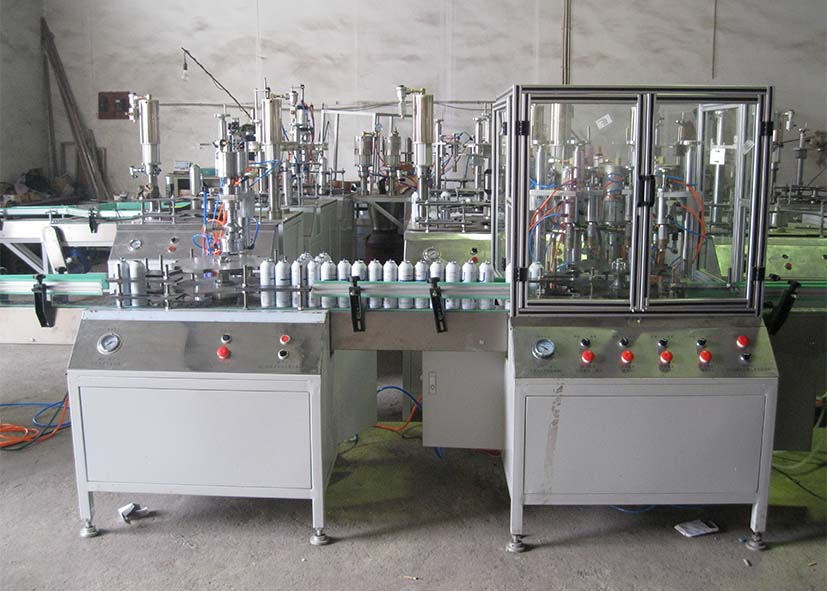

Automatic Bag-on-valve Aerosol Filling Line With Weighing Machine,
Water-bath Leakage Tester,Pressure Actuator, Cap Presser
Application
Suitable for Bag-on-valve Aerosol filling, capping, labeling and cartoning.
Air Pressure: 0.4～0.6MPa
Capacity: 2,000-5,000 BPH
Filling Volume: 0～5L
Required Operator: 3-4 workers
Equipment Noise: ≤80dB
Also suitable for
Food: Jam, Sauce, Paste, Honey, Chili Sauce, Ketchup, Edible oil,
Olive oil, Salad Dressing, Salsa, Barbecue Sauce.
Pharmaceutical: Liquid vitamins, E-liquid, Peroxide, Syrup, Eye
drops, Fish oil, Nasal spray, Alcohol, Lotion.
Daily Chemical: Liquid soap, Cleaning Chemical, Laundry liquid,
Toilet Cleaning Agent, Dish Detergent, Detergent, Cleaning Fluid,
Bleach, Disinfectant.
Personal Care: Shampoo, Hair Care, Hair Gel, Lotion, Lip Balm, Nail
Polish, Shower Gel, Hand Soap, Hand Cream, Body Lotion, Cream,
Perfume.
Agrochemical: Pesticide, Fertilizer, Herbicide, Paraquat,
Imazethapyr, Bactericide, Rodenticide.
Chemical: Corrosive Product, Fuel, Lubricating oil, Antifreeze,
Brake Fluid, Paint, Coating, Glue, Adhesive, Additive.
Products Description:
This machine absorbs foreign advanced technology, charging
compressed air (or N2) under cap and valves sealing is the first
step by PLC control and touch screen interface, and then raw
materials are filled. The machine has the feature of fast speed,
easy operating, accurate dosage, reliable sealing and inflation
pressure can be adjusted freely. The machine could be integrated
with Automatic Weighing Machine, Automatic Water-bath Leakage
Tester, Automatic Pressure Actuator, Automatic Cap Presser,
automatic printer into one automatic line.
Technical Parameters:
| Available valve | 1〞 |
| Gas Filling Capability | 30-40cans/min |
| Liquids Filling Capability | 30-40cans/min |
| Gas Filling Accuracy | ≤±0.03MPa |
| Liquids Filling Accuracy | ≤±1% |
Bottle feeding machine, Full automatic bottle unscrambler
Bottle rinsing machine-air rinser, Bottle rinsing machine-wet
rinser
Servo type piston filling machine, Gravity liquid filling machine,
Corrosive liquid filling machine
Linear filling machine, Rotary filling machin, Cap pressing
machine, Crimping machine
Induction sealer
Round bottle labeling machine, Front & back labeling machine,
Sleeve labeling machine
Ink jet printer
Shrink packing machine
Carton erector
Carton packaging machine
Carton sealing machine
Palletizer
FAQ:
1---Any machine in stock?
For semi automatice machine, we have some in stock. It can ship
within 7-10 working days. For automatic machine, all have no stock.
Automatic machines are custom-made according to your bottles and
caps.
2---What is the lead time?
For single machine, it takes from 20~35 working days. For whole
filling line, it takes from 50~60 working days. (from the day we
have the downpayment and sample bottle and caps)
3---Can you help the shipment? Ship from which port?
Yes, we can help to the shipment, just tell us the name of sea port
in your side. If by air, it is from Shanghai International Airport.
If by sea, it is from Shanghai or Ningbo. And other seaport of
China are accepted.
4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.
5---can we visit factory to check machines firstly, then place
order?
Sure, welcome to visit us!
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will
be guaranteed for 12months
(2) Long time technology will be supplied.
(3) We can send our engineer to your side for installing and
debugging machines and training your people. Engineer's round-trip
tickets, accommodation, daily allowance USD80.00/day/person, and
your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to
china, so you can fit and debug machines by yourself.
