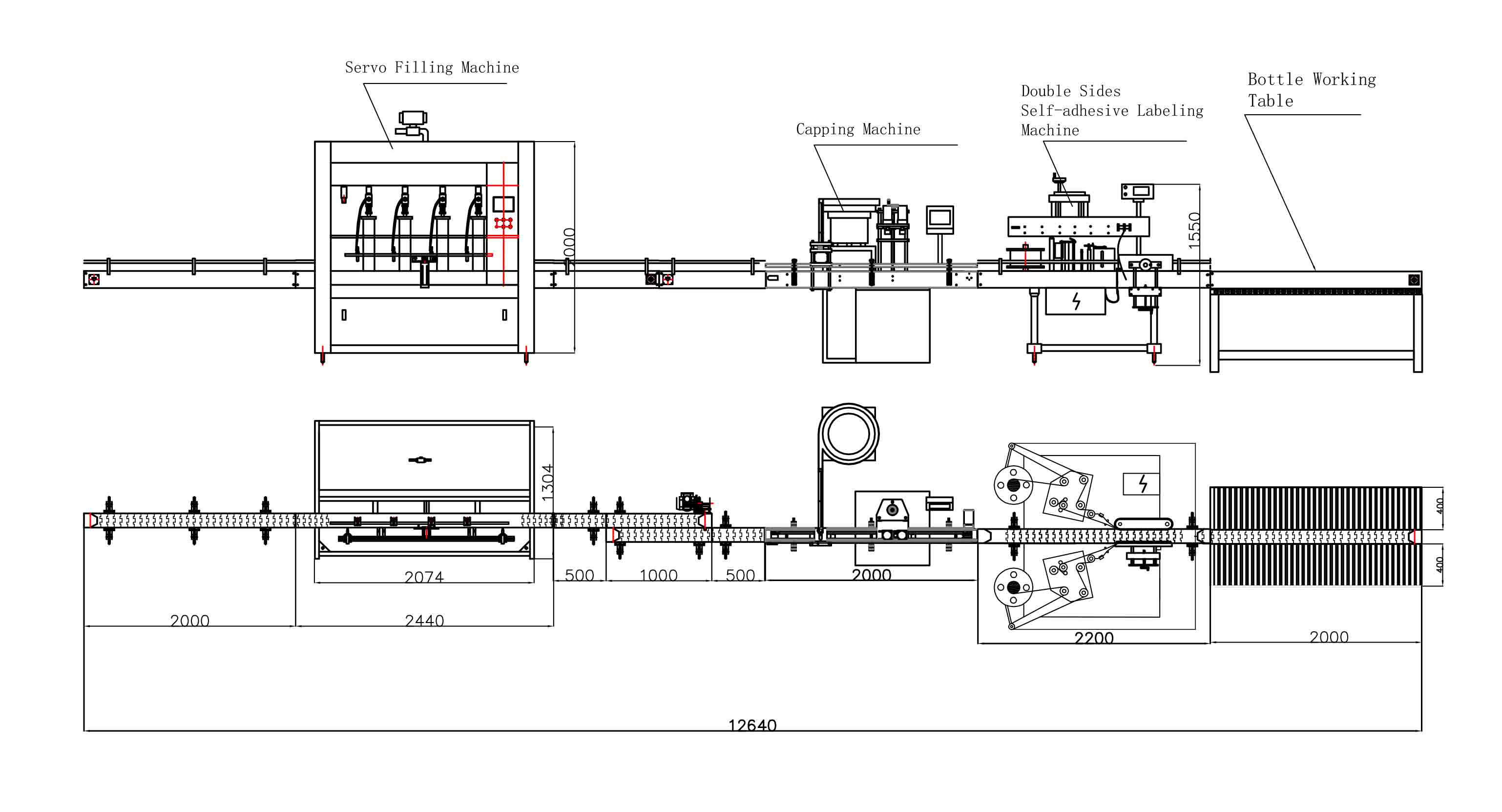

Foaming Detergent Liquid Filler Cleaner Bottle Filling Line With
Servo Piston Filling Machine,Capping Machine,Labeler
Application
Suitable for Foaming Detergent Liquid filling, capping, labeling and cartoning.
Air Pressure: 0.4～0.6MPa
Capacity: 2,000-5,000 BPH
Filling Volume: 0～5L
Required Operator: 3-4 workers
Equipment Noise: ≤80dB
Also suitable for
Food: Jam, Sauce, Paste, Honey, Chili Sauce, Ketchup, Edible oil,
Olive oil, Salad Dressing, Salsa, Barbecue Sauce.
Pharmaceutical: Liquid vitamins, E-liquid, Peroxide, Syrup, Eye
drops, Fish oil, Nasal spray, Alcohol, Lotion.
Daily Chemical: Liquid soap, Cleaning Chemical, Laundry liquid,
Toilet Cleaning Agent, Dish Detergent, Detergent, Cleaning Fluid,
Bleach, Disinfectant.
Personal Care: Shampoo, Hair Care, Hair Gel, Lotion, Lip Balm, Nail
Polish, Shower Gel, Hand Soap, Hand Cream, Body Lotion, Cream,
Perfume.
Agrochemical: Pesticide, Fertilizer, Herbicide, Paraquat,
Imazethapyr, Bactericide, Rodenticide.
Chemical: Corrosive Product, Fuel, Lubricating oil, Antifreeze,
Brake Fluid, Paint, Coating, Glue, Adhesive, Additive.
Automatic Servo Filling Machine
Brief Introduction:
This Filling Machine is volumetric filling machine which is
suitable for filling varies viscosity fluid. The machine is made by
in-line structure , filling head quantity can be custom-made
according to request like 6/8/10/12/16 heads.
The filling system is driven by servo motor which assure high
filling accuracy. It is controlled by the PLC, human interface and
easy operation.
It is widely used in the cosmetic, foodstuff, specialty chemical,
pharmaceutical, and personal care industries.
Features:
Made by high quality 304 Stainless steel, it is durable
No bottle no fill.
Can control different filling speed on one dose.
Filling system is controlled by servo motor, it assure high filling
accuracy.
Diving filling head is available according to different product(For
option).
Air blow off filling nozzle is available for sticky product to
avoid tail stringing on nozzle.
Product receive tray is available in case any leakage from filling
nozzle(For option).
Can save up to 20 groups parameter on the PLC, convenient for
operation.
No tooling needed to change over different size bottles.
Quick-install connecting parts , it is easy to disassemble and
clear machine.
Main Parameter:
| Model | Unit | SFC |
| Nozzle Number | PCS | 6 | 8 | 10 | 12 | 16 |
| Filling volume | Ml | 30-500 / 100-2500 / 500-5000 |
| Production capacity | Bottle/h | 1200-1900 | 1400-2600 | 1600-3200 | 1800-4000 | 2000-5000 |
| Quantitative error | % | ≤0.5% |
| Source voltage | V | Three-phase four-wire system AC220V 380V ±10% |
| Consumed power | KW | 2.5 | 2.8 | 3.5 | 4 | 5 |
| Gas supply pressure | MPA | 0.55-0.8 |
| Air consumption | M3/min | 1 | 1.2 | 1.2 | 1.8 | 2.5 |

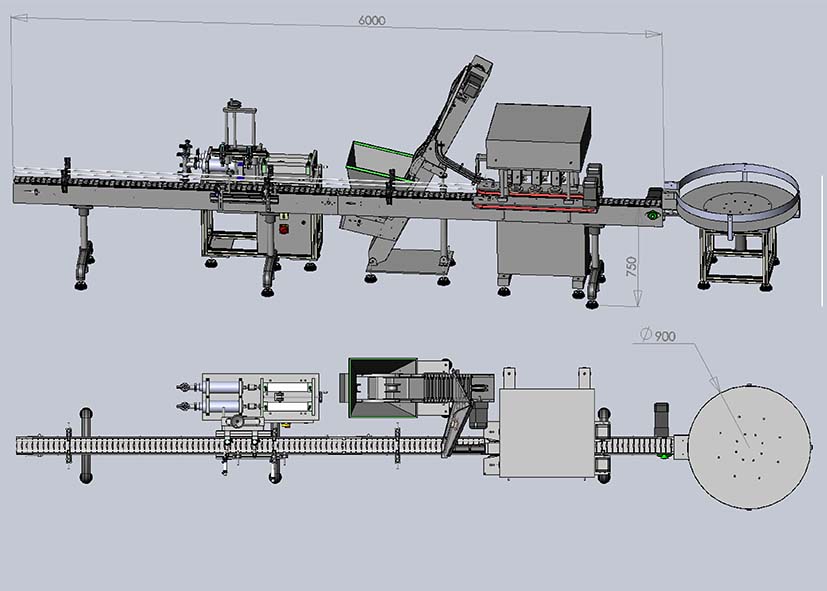

Bottle feeding machine, Full automatic bottle unscrambler
Bottle rinsing machine-air rinser, Bottle rinsing machine-wet
rinser
Servo type piston filling machine, Gravity liquid filling machine,
Corrosive liquid filling machine
Linear Capping machine, Rotary Capping machine, Cap pressing
machine, Crimping machine
Induction sealer
Round bottle labeling machine, Front & back labeling machine,
Sleeve labeling machine
Ink jet printer
Shrink packing machine
Carton erector
Carton packaging machine
Carton sealing machine
Palletizer
FAQ:
1---Any machine in stock?
For semi automatice machine, we have some in stock. It can ship
within 7-10 working days. For automatic machine, all have no stock.
Automatic machines are custom-made according to your bottles and
caps.
2---What is the lead time?
For single machine, it takes from 20~35 working days. For whole
filling line, it takes from 50~60 working days. (from the day we
have the downpayment and sample bottle and caps)
3---Can you help the shipment? Ship from which port?
Yes, we can help to the shipment, just tell us the name of sea port
in your side. If by air, it is from Shanghai International Airport.
If by sea, it is from Shanghai or Ningbo. And other seaport of
China are accepted.
4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.
5---can we visit factory to check machines firstly, then place
order?
Sure, welcome to visit us!
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will
be guaranteed for 12months
(2) Long time technology will be supplied.
(3) We can send our engineer to your side for installing and
debugging machines and training your people. Engineer's round-trip
tickets, accommodation, daily allowance USD80.00/day/person, and
your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to
china, so you can fit and debug machines by yourself.
