Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine

ZhongLi Packaging Machinery Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine from wholesalers

    Buy cheap Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine from wholesalers
    • Buy cheap Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine from wholesalers
    • Buy cheap Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine from wholesalers
    • Buy cheap Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine from wholesalers
    • Buy cheap Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine from wholesalers

    Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine

    Ask Lasest Price
    Brand Name : STRPACK
    Certification : ISO,CE
    Model Number : STR
    Price : Price Negotiable
    Delivery Time : 3-50 Working Days
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    • Product Details
    • Company Profile

    Electric Plane Self Adhesive Labeling Machine , Carton / Can / Bag Labeling Machine

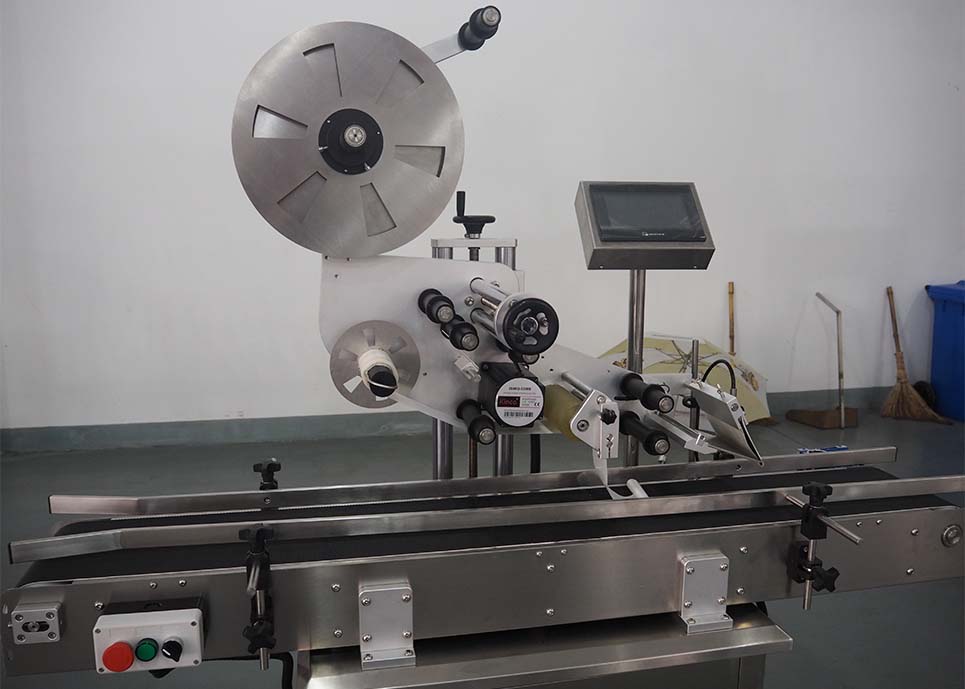

    Automatic Vertical Plane Self-Adhesive Labeling Machine For Carton Cans and Flat Bottles Bags Labeling Machine


    Brief Introduction :

    Plane Self Adhesive Labeling Machine is applicable for the surface labeling for various paper boxes, cartons, batteries, cosmetics etc, such as anti-counterfeit labels, bar codes and so on.

    Features:

    1. Operation on Touch Screen in English
    2. Human-computer interface with control by PLC.
    3. Adopt import electric components .
    4. With fault alarm display and help information
    5. To meet the needs of different products
    6. Label sending system with high precision, make sure the accuracy of labeling.
    7. Optional: date/batch printer / coder.

    Parameter

    No.
    Model
    STL-P
    1
    Speed
    80~200pcs/minute
    2
    Suitable label roll inner diamet size
    Φ75mm
    3
    Suitable label roll outside diamet size
    Φ350mm maximum
    4
    Drive
    Step motor driven
    5
    Label Size
    width:10~120mm length:20~300mm
    6
    Power
    0.5KW
    7
    Coding Device
    Ribbon Coder
    8
    Voltage
    AC 220V;50Hz
    9
    Weight
    150KG
    10
    Dimension
    2000×600×1500MM

    Configuration

    No.ItemBrandOrigin
    1PLCSiemensGermany
    2Touch ScreenWEINVIEWTaiwan
    3Variable-frequency DriveDeltaTaiwan
    4Intermediated RelaySchneiderFrance
    5Circuit-BreakerSchneiderFrance
    6Electric Eye(for label)SICKGermany
    7Electric Eye(for object)PanasonicJapan
    8Stepper Motor DriveFOYOChina
    9Conveyor MotorTaiqiChina
    10Servor MotorDonglingChina

    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.
    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.
    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
    About Us
    --Focusing on Development, Packaging Industry Leader
    --Keeping on Recruiting Talents and Innovation
    --Advanced equipment, Guaranteed quality

    For quick response please contact us by cellphone/WhatsApp:008617317720909
