Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans

ZhongLi Packaging Machinery Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans from wholesalers

    Buy cheap Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans from wholesalers
    • Buy cheap Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans from wholesalers
    • Buy cheap Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans from wholesalers
    • Buy cheap Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans from wholesalers
    • Buy cheap Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans from wholesalers

    Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans

    Ask Lasest Price
    Brand Name : STRPACK
    Certification : ISO,CE
    Model Number : STR
    Price : Price Negotiable
    Delivery Time : 3-50 Working Days
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    • Product Details
    • Company Profile

    Piston Intellectual Injection Filling Machine For 0.5-5L Bottle / Tin Cans

    Automatic Piston Filling Machine Intellectual Injection Viscous Liquid Filler With 10 Filling Heads For 0.5-5L


    The SFC Series piston filling machines are designed to dispense products of different viscosity,

    ranging from water thin liquids to thick creams, for the cosmetic, food,pharmaceutical, oil and specialty industries.


    Automatic Piston Filling Machine is made for all kind of oil bottle or tin cans filling,in food industry or mechanical industry ,such as cooking oil,corn oil,rapeseed oil ,palm oil ,lube oil ,brake oil etc. All the contacted part with the oil is high quality stainless steel.. The machine adopt piston pump for filling..By adjusting the postion pump,it can fill all of the bottles in one filling machine ,with quick speed and high precision.


    Automatic Piston Filling Machine integrating mechanical and pneumatic. Electrical and pneumatic components to choose is well-know brand .Controlled by the touch screen and PLC. Has advantage of reasonable design ,compact strcture,beautiful appearance, stable and reliable performance. High filling precision and strong feasibility. Easy operation and maintenace.

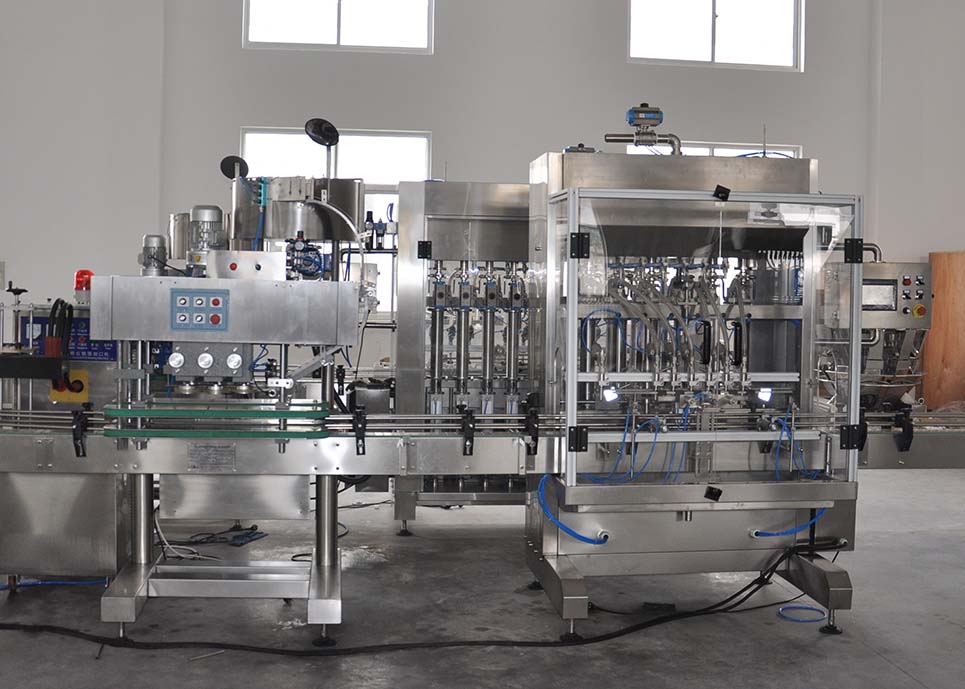

    Automatic Piston Filling Machine
    Specification
    Name
    Automatic Piston Filling Machine
    Model
    SFC-10
    Filling Nozzles
    2-12 nozzles, or customized
    Power
    2.5KW
    Applied bottle range
    30-100ml, 100-1000ml, 900ml-5000ml
    Filling Accuracy
    ±0.1%
    Filling speed
    800-4200 bottles/hour , 30b/min per 4 filling nozzles 1L
    Dimension
    2200*1400*2300mm
    Weight
    800kg
    Power supply
    220V Single phase 50HZ 380V Three phase 50HZ



    Configuration

    ITEMSUPPLIERBrand
    1Touch screenTaiwanWEINVEIW
    2PLCJapanMitsubishi
    3Photo sensor for bottlesJapanOPTEX
    4solenoid valveTaiwanSHAKO
    5Level buttonMexicoJOHNSON CONTROLS
    6angle seat ValveJointedBURKERT
    7Diving cylinderTaiwanAIRTAC
    8Power buttonFranceSchneider
    9ButtonFranceSchneider
    10frequency converterFranceSchneider
    11Magnetic switchTaiwanAIRTAC
    12oil-water separatorTaiwanSHAKO
    13Speed reducerChinaJiao xing
    14RelayJapanOmron
    15Servo motorJapanPanasonic

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
