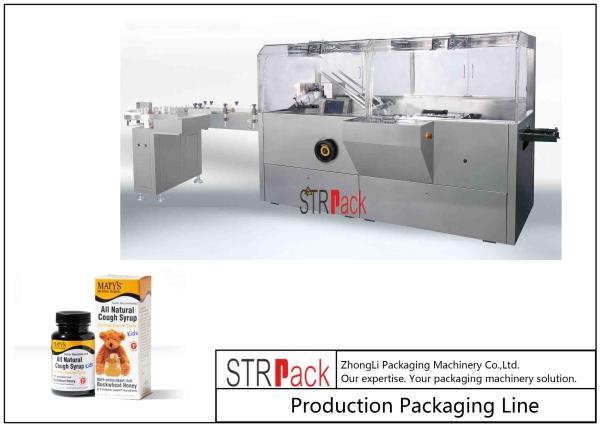

    Stable Performance Bottle Packing Machine / Automatic High Speed Cartoning Machine

    Ask Lasest Price
    Brand Name : STRPACK
    Certification : ISO,CE
    Model Number : STR
    Price : Price Negotiable
    Delivery Time : 3-50 Working Days
    Payment Terms : TT/LC
    Supply Ability : 1000 SET
    • Product Details
    • Company Profile

    Stable Performance Bottle Packing Machine / Automatic High Speed Cartoning Machine


    Full Automatic Carton Packing Machine for bottle
    Feature
    1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
    2. Adopt human-machine operation system.
    3. Automatically displaying device for trouble, speed and finished products counting.
    4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
    5. No products not suction leaflet, no leaflet not suction carton .
    6. Automatic detection and rejection device for lacking blister goods and leaflets.
    7. Protecting automatically for overloading.
    8. stable performance , operation is easy.
    Instruction
    Automatic cartoning machine is suitable for blister cartoning,bottle, pouchs and injection,medicine,cosmetis,condom.food,tube,ointment,wrapped products cartoning. The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain
    Main technical parameters
    Encasing speed
    30-100 boxes/min
    Box
    Quality requirement
    250-350g/m2
    Dimension rangeL×W×H
    (65-180)mm×(35-85)mm×(15-50)mm
    Quality requirement
    60-70g/m2
    Leaflet
    Unfolded leaflet specificationL×W
    (80-250)mm×(90-170)mm
    Fold range
    (1-4) fold
    Compressed air
    Working pressure
    ≥0.6mpa
    Air consumption
    120-160L/min
    Power
    220V/50Hz
    Motor power
    0.75kw
    Machine dimension(L×W×H)
    4300mm×1100mm×1550mm
    Machine weight
    1600kg








    5.Component List
    NameModel and SpecificationPlace of Origin or BrandQty
    Main MotorR17DT80N4 750w//220V/380VGermany SEW1
    Frequency ConverterFC-051PK75S2E20HDenmark Danfoss1
    BreakerDZ47-D10/2PChinese Yaohua1
    BreakerDZ47-D63/1PChinese Yaohua2
    Switch PowerNES-50-24VTaiwan Mingwei1
    Power SwitchT0-2-1/EA/SVBGermany Queensway Moeller1
    Emergency Stop ButtonZB2-BE102CFrance Schneider1
    RelayMY2NJ/24VDCJapan Omron4
    Touch ScreenSMART700Germany Siemens1
    PLCSMART ST30Germany Siemens1
    CoderE6B2-CWZ6CJapan Omron1
    Optical Fiber AmplifierE3X-NA11Japan Omron1
    Optical FiberE32-ZD200Japan Omron1
    Photoelectric SwitchD-73277Germany Leuze2
    Photoelectric SwitchGTE6-N-1212Japan Omron1
    Proximity SwitchTL-Q5MC1Japan Omron1
    Filter Pressure Reduce ValveAW30-03EJapan SMC1
    Electromagnetic Valve(Reject)VQ21A1-5G-C8Japan SMC1
    Electromagnetic ValveVP342R-5GD1-02AJapan SMC1
