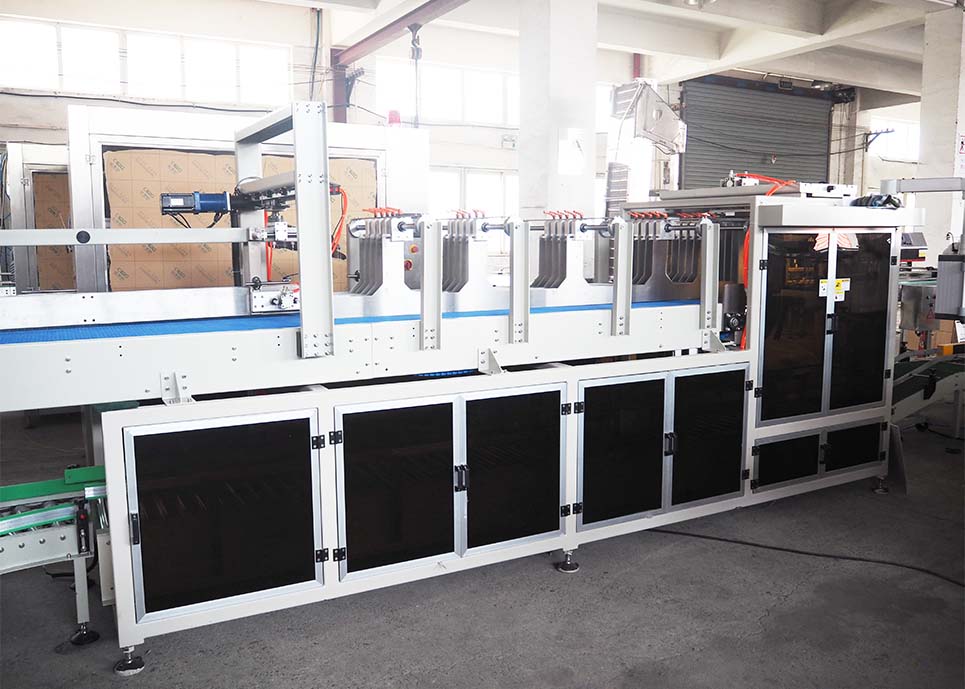

    Vertical Drop Down Carton Packing Machine High Efficiency For Medicine / Food Industry

    Automatic Case Packing Machine Dropdown Carton Packer For Bottle With Servo Control System For Bottle Filling Machine



    This packing machine adopts coordinate picking system. It adopts the vertical upper and lower packing method, this machine is suitable for medicine,food,beverage,beer,liquor,oil,dailychemical,bottled food and other industries.


    Product Description

    1. Control panel:Adopt Siemens touch screen control panel, have automatic palletizing,counting,fault alarm and other functions, have perfect mechanical,electrical protection and technology protection function.

    2. Work speed can automatically adjust according to the box container flow condition of conveyor belt,and complete the communication link with the conveyor belt.

    3. Pick and place device: cylinder stepped up as well as servo drive is controlled by PLC,equipped with anti-sticking protection device preventing none breakage in the product when the carton set.

    4. In and out of the box conveyor belt: adopt frequency conversion control, can replace according to different product,automatically adjust the working speed of the conveyor belt.

    5. Safety protection device:The whole machine is equipped with organic glass door,weigh reasonably in the grappling fixture.There are the limit switch and the anti-sticking machine.

    6. Whole aluminum and stainless steel frame:the surface is beautiful, small volume.

    7. The machine has feeding conveyor belt, case packing conveyor and carton direction adjustment system.


    Specification


    case packer

    Produce capacity1500
    Bottle type5L/b,4b/case
    Packing qty per cycle4
    Bottle conveyor height1000±25mm
    Carton height500±25mm
    Power supply380V 50-60HZ
    Power5kw
    Air pressure6bars,80nl/min
    Net weight2550kg
    Dimension(mm)1500*1000*1800

    case opening machine

    Carton size200-500L/150-420H/100-500mm
    Table height(min)650
    Spreed500-720case/hr
    Outline size2000*1900*1200
    Power220/380v,50/60HZ
    Air compress5-6kg/cm^2 150ne/min
    Adhesive tape48mm&75mm
    Weight350kgs

    carton sealing machine

    Sealing carton ability18-25 carton/min
    Power220v 300w
    Air compress0.5mpa
    Weight

    400KG



    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
