5-50kg Animal Feed Bird Seed Pet Food Fish Feed Packaging Machine

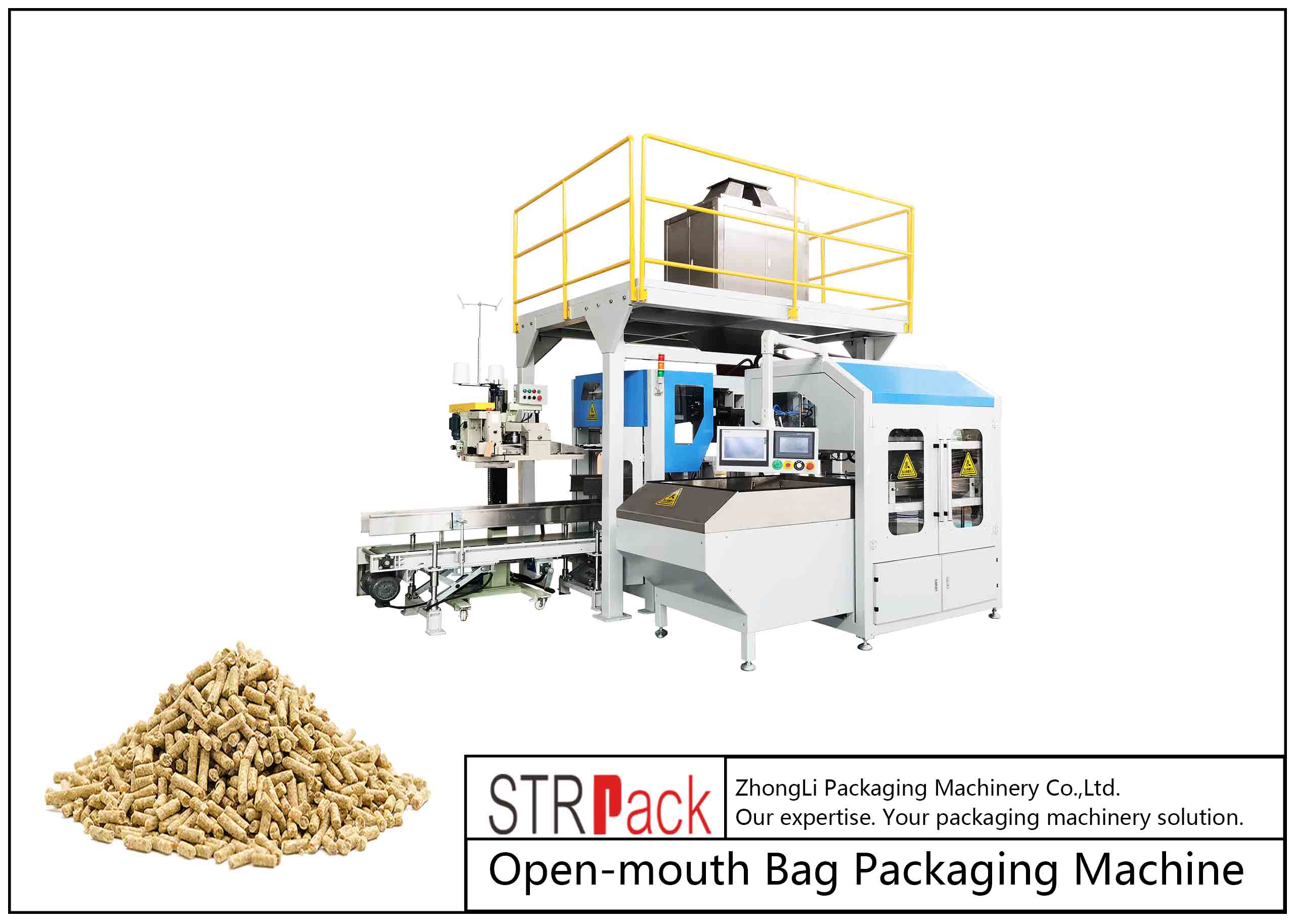

Open-Mouth Bagging Machine
GW is STRPACK's fully automatic bagging system, up to 1000
bags/hour, designed specifically to fill and close medium
open-mouth and gusseted bags.
Its particularly compactsize means that the machine can be
installed in any existing production area.
GAOGE also offers a semi-automatic packaging system equipped with a
manual bagging scale. To achieve optimal bag quality or integrate
special features and options, you can opt for an open-mouth bagging
machine (for filling small-size, pillow-type or side-gusseted
plastic bags) along with a robotic bag palletizer and a stretch
wrapper. Pinch bottom bag closers/sealers from VFFS are also
available. Feed bagging and packaging machines from GAOGE are
accurate, fast and reliable.
Feature:
* The automatic packaging machine can pack granular and powder
materials into premade open mouth bags automatically, It can
realize automatic bag feeding, bag opening, bag loading, products
filling, bag sealing and others.
*The packed bag is well sealed, suitable for packing powder and
granule, like feed, pet food, seed, rice, salt, fertilizer, etc.
*Friendly human-machine interface (HMI), it can providing complete
fault diagnosis and solution, and quick switching of working modes
for packing different characteristics materials.
* Controlled by the color touch screen(Siemens), and has real-time
online detection function, which is convenient for different users
* Stable and reliable running, convenient maintenance
* Compact design ideal for restricted packaging rooms
* Individual bag pick-up and opening
* Empty bag (with or without gusset) transfer to filling mouth
* Bag hermetic fastening on filling mouth
* Bag filling (product discharge from scale or dozer) and vibrating
* Closing system: Thermo-sealing and/or multiple sewing, fold and
glued etc.
Options:
All common types of bag closing devices
Product de-aeration
Remote control panel
Bag turning
Closed bag ‘push off’ (top or bottom first)
Full stainless steel design
Specifications
| Model | GW-650 |
| Applicable materials | granular(good liquidity) |
| Weighing range | 5 to 50kg (10lb to 110lb) |
| Bag Matirical | Woven bag, kraft paper bag, PE bag |
| Bag Type | One line pocket, M side pocket |
| Speed | 3 to 16 bags/min |
| Ambient temp | -10°C to +45°C |
| Electrical | 380V/50Hz, 3phase or customized per specification |
| Power | 3KW |
| Air Pressure & Consumption | 0.7Mpa, 0.6 M3／min |
| Bag size(mm) | L 900-1100mm x W 550-650mm |
| Packing weight(kg) | 40-50kg/bag |
FAQ
1---If have stock machine?
For semi automatice machine, we all have stock. Can ship within 7
working days. For automatic machine, all have no stock. Automatic
machines are customized made according to bottles and caps. It need
place the order, then manufacture.
2---How long time to make?
For single machine, it takes from 10~30 working days. For whole
filling line, it takes from 40~60 working days.
3---Ship from which port?
If by air, it is from Shanghai International Airport. If by sea, it
is from Shanghai or Ningbo. Other seaport of China is also
accepted.
4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.
-If can visit factory to check machines firstly, then place order?
Sure! Welcome to visit us !
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will
be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and
debugging machines. Engineer's round-trip tickets, accommodation,
and your side traveling fee will be charged by you. Engineer's
salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to
china, so you can fit and debug machines by yourself.
